How to measure a retractable flyscreen
How to measure a retractable flyscreen
Measuring your home for a Sharknet retractable flyscreen door is easy all you need is a note pad, a pen and a tape measure.
Step 1 – Decide where you want to mount your retractable flyscreen
Step 2 – Draw a rectangle on your note pad or use the template using the link below to record your measurements.
Step 3 - When measuring a retractable door, it's crucial to consider the following factors to ensure a proper fit and smooth operation: ·
- Any obstacles such as door handles that might get in the way. ·
- Any pet doors that protrude past the door frame. ·
- Where you are going to mount it on the bottom, top and sides. ·
- Will it be installed inside the frame (Recess / Reveal Fit) or outside (Face Fit)

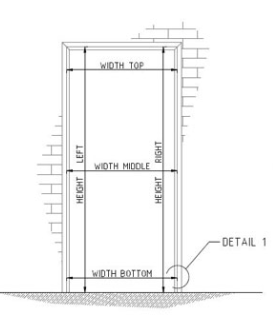

Step 4 - Measure the Width at the top, middle and bottom.
Step 5 - Measure the Height at the Left side, Middle and Right from top to bottom.
By measuring the width and height of the door opening at multiple points we ensure the frame is square, if not don’t worry, just provide all your measurements and we will make the necessary adjustments to ensure your new Sharknet retractable flyscreen will fit snugly.
Also, note from which direction you want the door to open and close. Starting from the Left and closing to the Right or the opposite Right to Left. Door openings over 4 Meters will need to be Centre Opening, Doors over 2.8m will require a windbar which are discreetly painted to match your mesh and blend in as much as possible.
Sharknets unique system makes DIY easy.
Traditionally, measuring for a retractable fly screen is a bit like tailored clothing, precision is great but with Sharknets unique system is not the end of the world if you are out by 5mm, our system will still keep the bugs out.

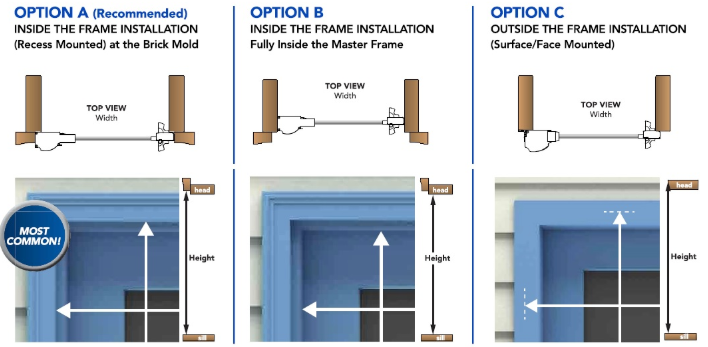

Next, before you grab your tape measure, you will need to determine if you need to do an Inside Mount (fitting the screen inside the door reveal/recess) or an Outside Mount (fixing it onto the face of the architrave). This is usually dictated by the direction that your doors open. integer.
Historically, measuring for a retractable flyscreen used to be about precision and being off by even a few millimeters used to create sticking or gaps. Don’t worry, Sharknets unique corner system takes into account any “out of square” and/or mis-measurements.
Next, before you grab your tape measure, you will need to determine if you need to do an Inside Mount (fitting the screen inside the door reveal/recess) or an Outside Mount (fixing it onto the face of the architrave). This is usually dictated by the direction that your doors open. integer.
Download your check measure form here
Preparation Checklist
Use a metal retractable type tape measure, fabric tapes stretch and lead to inaccuracies.
Quick Pro-Tip: If you are unsure about the depth, hold a matchbox or a small block of wood (35mm deep) against the frame. If the window or door closes without hitting it, you have enough room for a Recess Fit.
Record your measurements in millimeters, this is the industry standard for flyscreens.
Finally Check for Obstructions
Before you finalize, look for:
- Window Handles: Do they protrude? If they stick out past the frame, the mesh will hit them when it closes.
- Winder Mechanisms: If you have an awning window, ensure the winder won't block the bottom track.
- Alarms/Sensors: Ensure no security sensors are in the path of the tracks.
Quick Pro-Tip: If you are unsure about the depth, hold a matchbox or a small block of wood (35mm deep) against the frame. If the window or door closes without hitting it, you have enough room for a Recess Fit.
If you get stuck feel free to just fill in our online inquiry form and we will walk you through the process.
For Recess Fit Retractable Flyscreens
Width:
Measure the inside width of the window opening at the top, middle, and bottom. Record the smallest measurement.
Height:
Measure the inside height from the top to the bottom on the left, middle, and right. Record the smallest measurement.
Deductions:
We will take care of any deductions, simply send us your "tight" opening size.
For Face Fit Retractable Flyscreens
Width:
Measure the width of the opening including the frame of the door that the screen will be attached to. We will provide you with the appropriate angle to be able to mount your screen. We stock 20 x 25mm, 25 x 50mm and 50 x 50 mm. Please specify which angle size you need when providing us with your measurements.
Height:
Measure the height of the opening to the very top of the doorway or window frame.
No deductions will be made on Face fit measurements.
Tip: Measure from where you want the very outside edges of the screen frame to sit.
